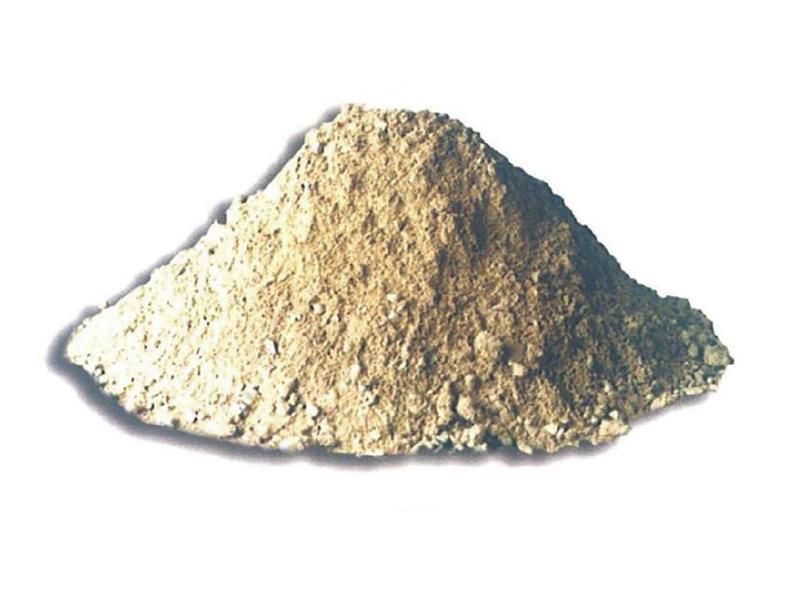

Tundish coating material made from quality magnesia and magnesia-calcia sand with phosphate composite binders features easy trowelling, strong adhesion, no cracking or spalling, good erosion resistance and easy stripping, ideal for quick repair of continuous casting tundish working linings.
| MgO content | ≥ 90% |
|---|---|
| CaO content | 3%～6% |
| Bulk density (110℃×24h) | ≥ 2.0 g/cm³ |
| CCS (110℃×24h) | ≥ 10 MPa |
| CCS (1500℃×3h) | ≥ 30 MPa |
| PLC (1500℃×3h) | 0～-0.8% |
| Refractoriness | ≥ 1790℃ |
| Service temperature | ≥ 1600℃ |
Tundish coating material is a high-magnesia unshaped refractory made from quality magnesia and magnesia-calcia sand, blended with phosphate composite binders, plasticizers and fibers. It is applied by trowelling or spraying onto the tundish permanent lining surface to form a working lining of certain thickness. Compared with wet casting and dry vibrating mixes, coating material offers faster installation, shorter curing and baking cycles, and is particularly suitable for quick-turnaround tundish relining and on-line repair, while also purifying steel and providing thermal insulation.
Coating material suits quick relining, local repair and irregular parts, with fast installation and good adhesion; dry mix suits integral working lining by dry vibrating with longer life. They are often used together.
Yes. Magnesia coating adsorbs alumina and other inclusions from molten steel, improving steel cleanliness with continuous casting practice, while its insulation helps stabilize tundish steel temperature.
Plasticizers and fibers in the formulation improve toughness and regulate moisture escape paths; together with the phosphate bonding system, the material stays dimensionally stable during baking without explosive spalling.
Yes. Henan Songrui New Refractory Materials Co., Ltd. customizes formulations by tundish shape, steel grade and installation method (trowelling/spraying), with on-site guidance.
